New for 2025, the BOLT line brings Nocpix thermal performance into an affordable weapon sight platform. Available in two models, the L35 (384×288) and P25 (256×192), both optics feature an integrated laser rangefinder and ballistic calculator, providing long-range precision without breaking the budget. Built for the field, the BOLT combines an internal rechargeable battery with a removable hot-swappable 18650 auxiliary battery for extended run time. Designed to mount like a traditional day optic, it is compatible with standard 30 mm rings and mounts (not included), making it equally at home on bolt-action and semiautomatic rifles. While not as feature-rich as the ACE series, the BOLT models deliver reliable thermal imaging, intuitive controls, and rugged construction in a streamlined package. For the first time, Nocpix offers a budget-friendly option with a built-in rangefinder, making the BOLT line a tremendous value for shooters looking to step into thermal without compromise on critical capabilities.

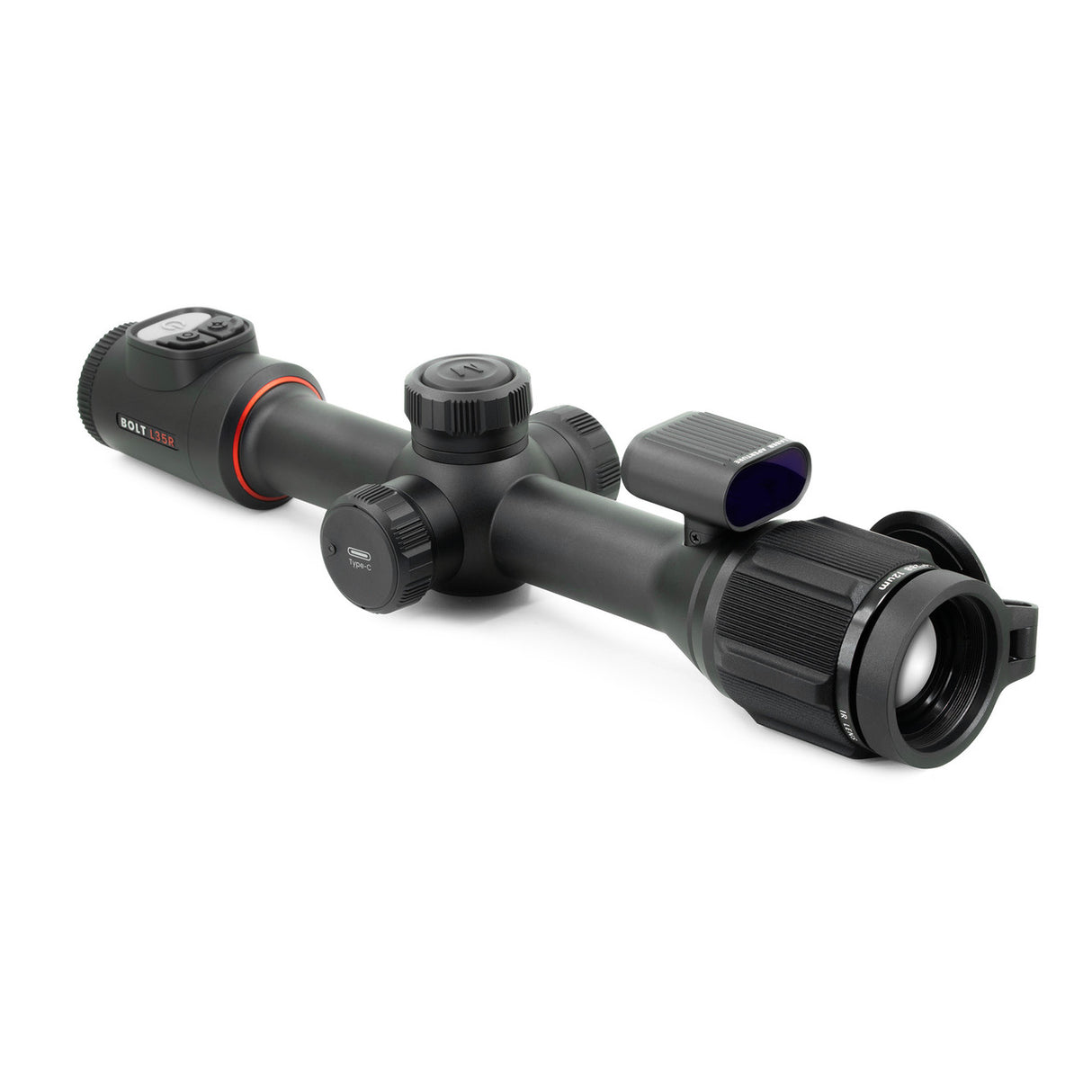

NOCPIX BOLT L35R Thermal Weapon Sight LRF 384 35mm
NOCPIX BOLT L35R Thermal Weapon Sight LRF 384 35mm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
-
Optics
Objective Focal Length35 mm
Detection Range1970 Yards
Optical Magnification3.5X
Digital Magnification4X
Objective Lens MaterialGermanium
Horizontal Angular Field of View7.5°
Vertical Angular Field of View5.7°
Objective Diameter35 mm
Objective F#1.0
Focusing MechanismManual Focus
Eye Relief50mm
Display TypeAMOLED
Diopter Range-5 to +5
Diopter Range-5 to +5
Display Resolution1024×768
-
Features & Performance
Startup Time<10 Seconds, Instant from Standby
RangefinderIntegrated 1,300 Yard LRF
Color PalettesWhite Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
Picture-in-PictureYes
Storage Capacity32 GB
Connector OutputPower/Data
User-Updatable FirmwareYes
Mobile AppYes
One-Shot ZeroYes
Stand-by ModeYes
Warranty5 Years
Run Time6+
Power SourceUSB-C External, 18650 Battery, Built-In Battery Pack
Reticle8 (7 Static, 1 DIY)
Connector TypeUSB-C
External Power SourceUSB-C
Country of ManufactureChina
WifiYes
Onboard RecordingYes
Image CaptureYes
Video OutputYes
